TICKR — Architectural Hardware
Floor Spring Series

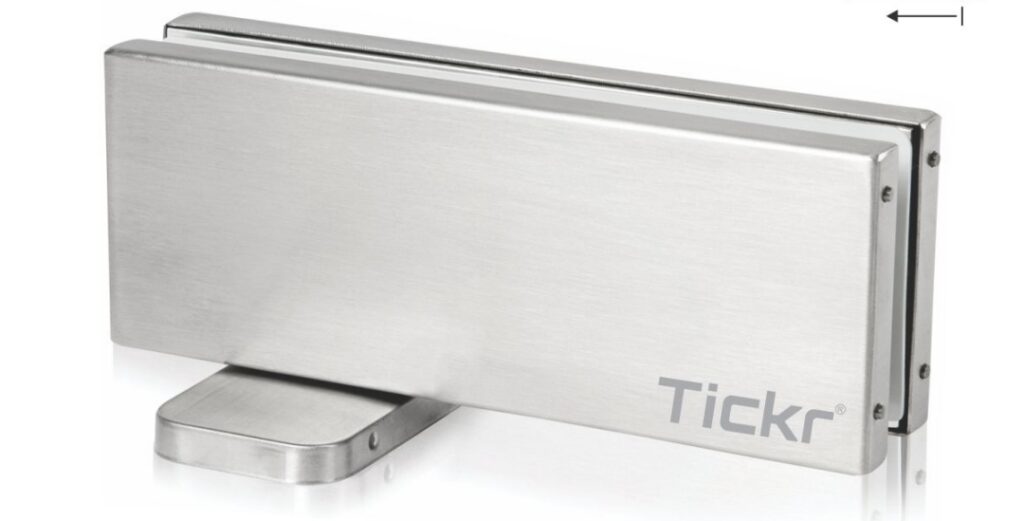

Tickr Tch-100 Hydraulic Floor Hings
Fig. 01 — Primary view
01 · View 1
02 · View 2
03 · View 3
Floor Spring

Hydraulic Floor Hings

Heavy-duty stainless steel hydraulic floor spring designed for frameless glass doors in commercial and office spaces. Supports door weight up to 80 kgwith smooth hydraulic closing action. Compatible with 10-12 mm toughened glass doors. Corrosion-resistant SS body suitable for high-traffic entrances, showrooms, hotels, and banks. Supplied complete with top pivot, cover plate, and fixing accessories etc.

Door Weight Capacity
Up to 80 kg
Closing Type
Double Action
Hold Open Angle
90 Degree
Cover Material
Stainless Steel
Body Type
Heavy Duty
Opening Angle
120 Degree
Request a QuoteWhatsApp UsDownload Datasheet PDF
Technical Data

Technical Specifications

Door Weight CapacityUp to 80 kg
Closing TypeDouble Action
Hold Open Angle90 Degree
Cover MaterialStainless Steel
Body TypeHeavy Duty
Opening Angle120 Degree
Warranty7 Year
BrandTickr
Suitable Width750-900 mm
Suitable Height2100-2250mm
Suitable Door thickness8-12mm
Ambient Temperature20"c-+50"c
For complete specifications, drawings, and load data, request the full datasheet on WhatsApp →
Why TICKR

Built for the way India builds

Engineered for India

Designed and tested for dust, humidity, voltage fluctuations across Indian commercial sites.

Manufacturer Direct

No middlemen, no distributor markup. Direct manufacturer pricing for dealers, contractors, architects.

TÜV-SÜD Certified

Independent international testing. Load ratings and endurance claims independently verified.

7-Year Warranty

Industry-leading written warranty backed by 500,000+ cycle testing on every production batch.

Downloads

Specifier resources

PDF
Datasheet
PDF · Available on request
PDF
Installation Guide
PDF · Step-by-step
DWG
CAD Drawing
DWG · AutoCAD 2018+
