Floor Spring

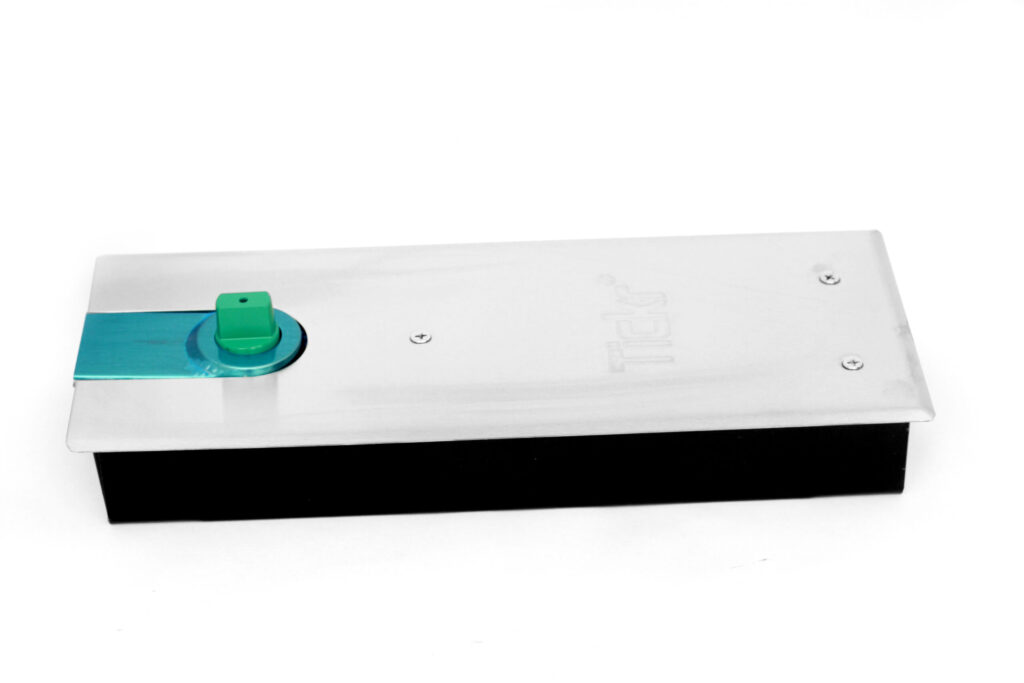

Double Cylinder Floor Spring — 150kg Heavy Commercial Glass Door
The Tickr TCH-9400 is a double cylinder floor spring for heavy commercial glass doors up to 150 kg and 1200 mm wide. Tested to 5,00,000 closing cycles, with universal cylinder, two-stage adjustable speed control, four-position hold-open, and 7-year warranty. Available in Stainless Steel, Black, Gold, and Rosegold finishes.

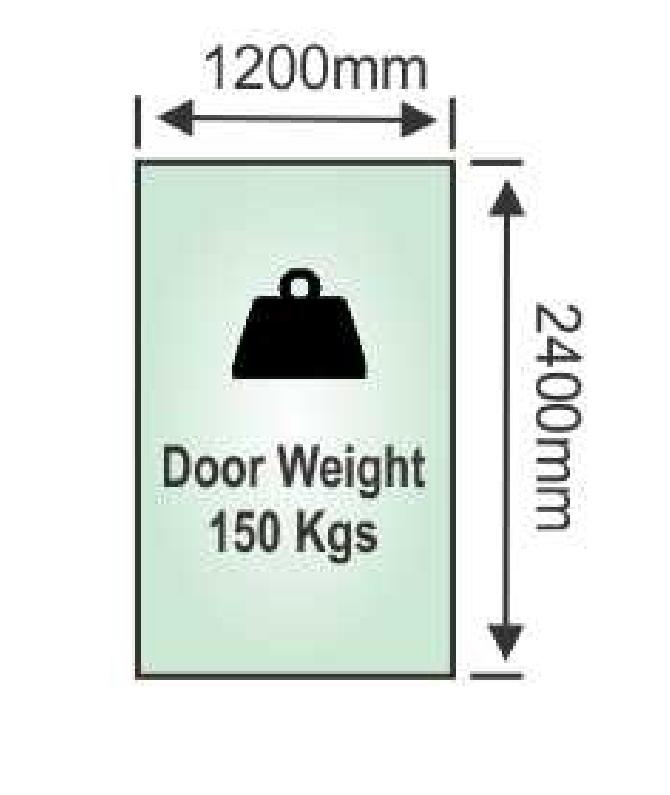

Door Weight Capacity
Up to 150 kg
Closing Type
Double Action
Hold Open Angle
90 Degree
Cover Material
Stainless Steel
Body Type
Heavy Duty
Opening Angle
120 Degree
Technical Data
Technical Specifications
Door Weight CapacityUp to 150 kg
Closing TypeDouble Action
Hold Open Angle90 Degree
Cover MaterialStainless Steel
Body TypeHeavy Duty
Opening Angle120 Degree
Warranty7 Year
BrandTickr
Closing Force25mm
Maximum Wide Door Leaf1200mm
For complete specifications, drawings, and load data, request the full datasheet on WhatsApp →
